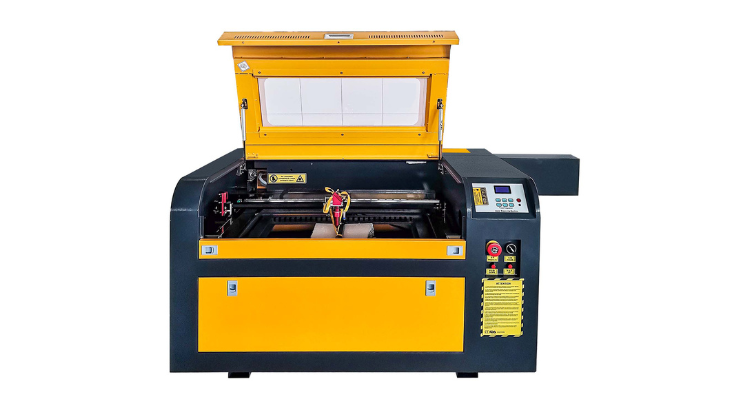

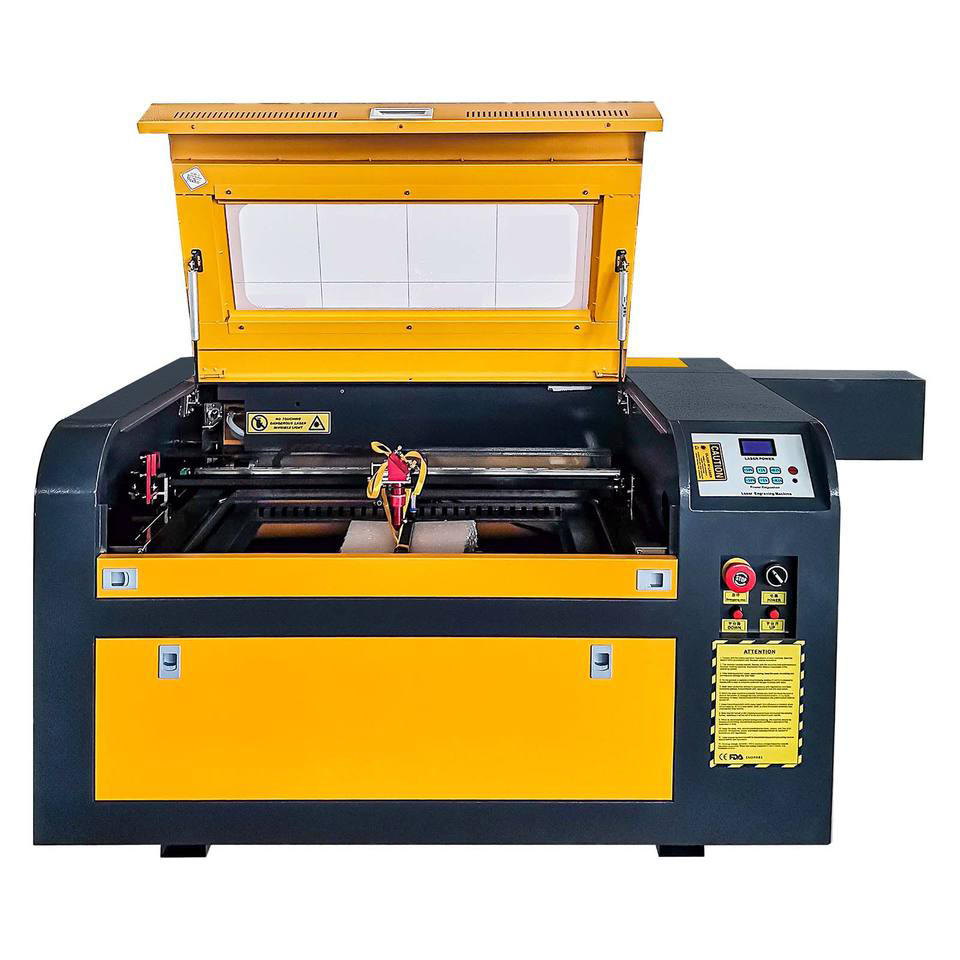

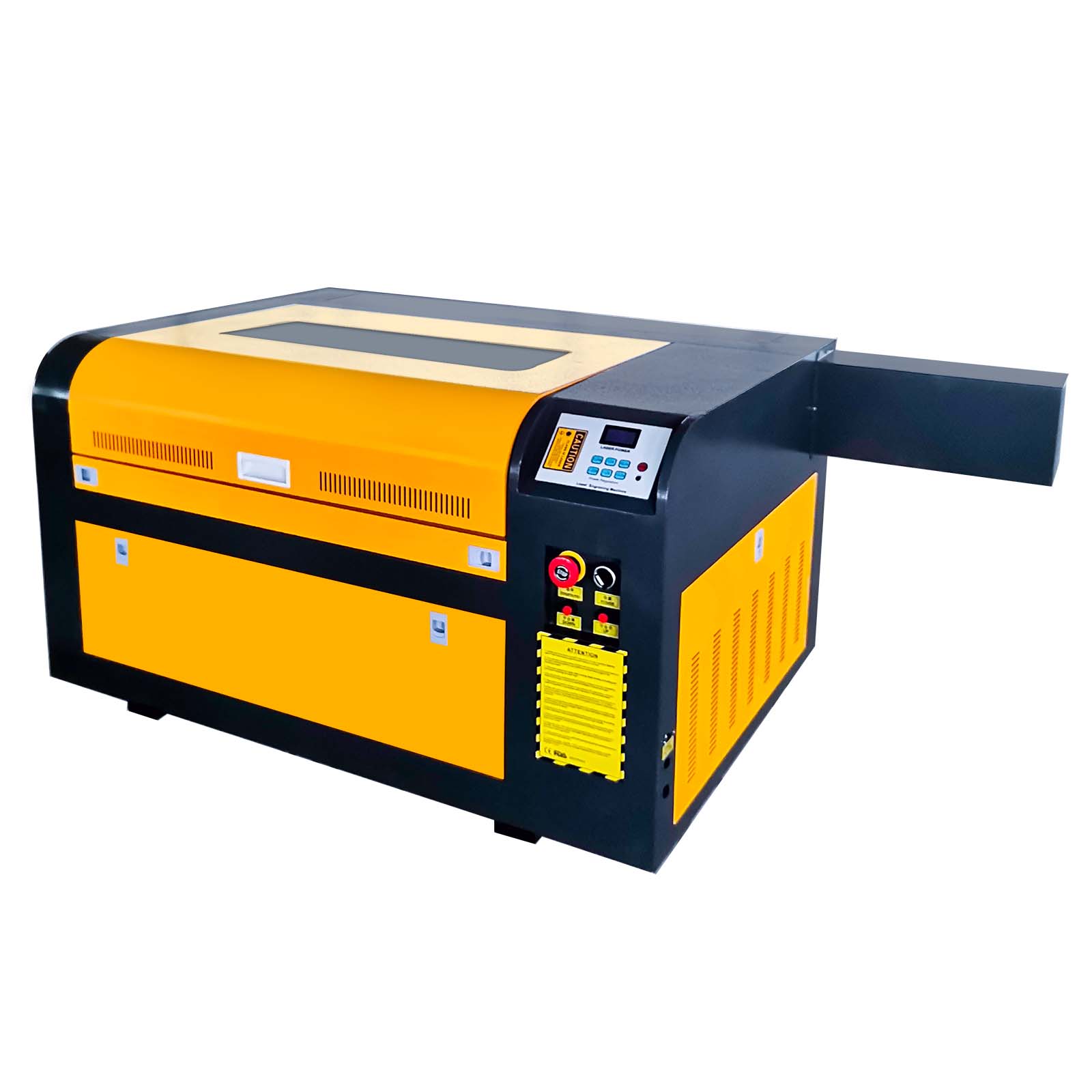

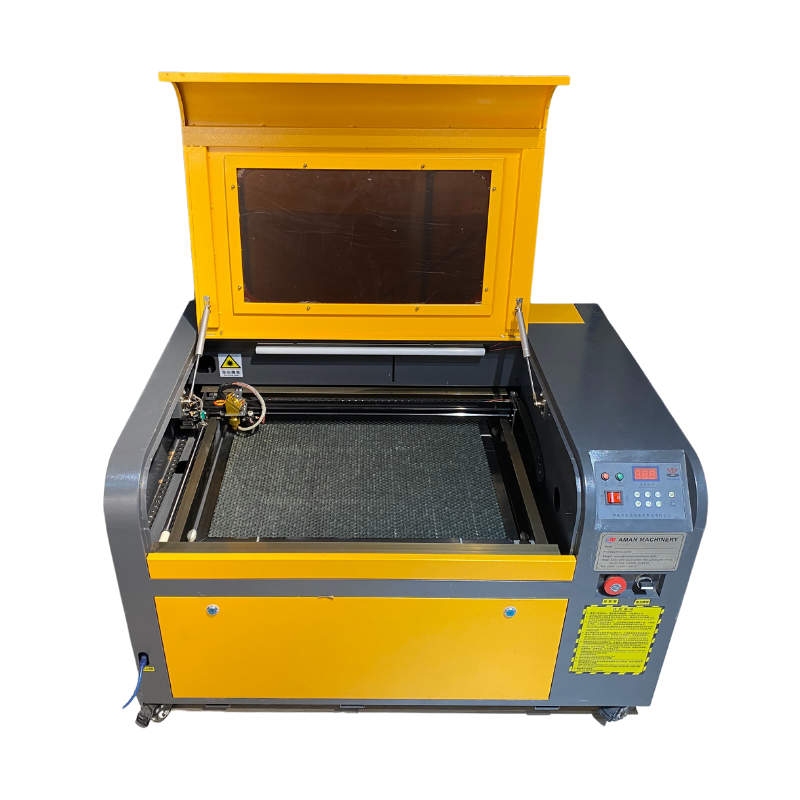

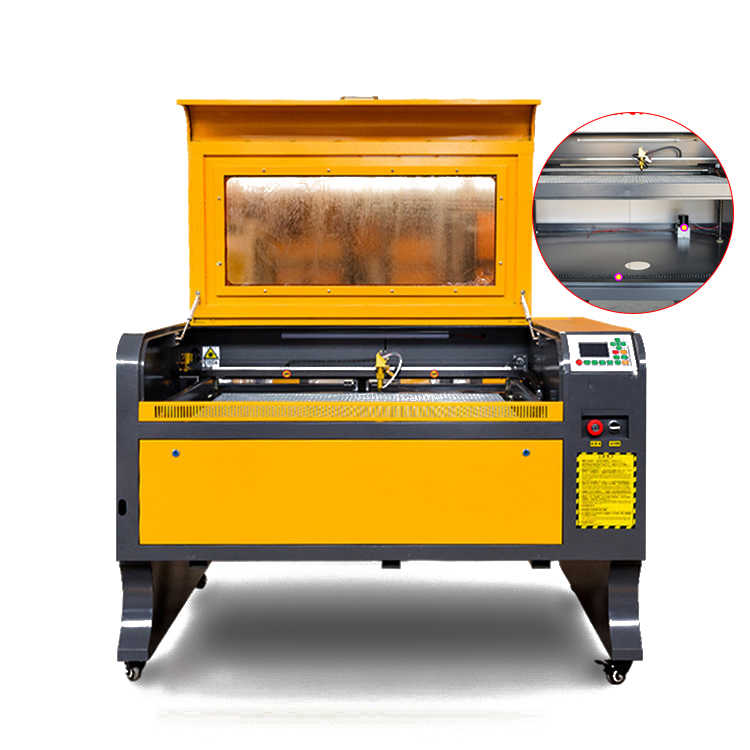

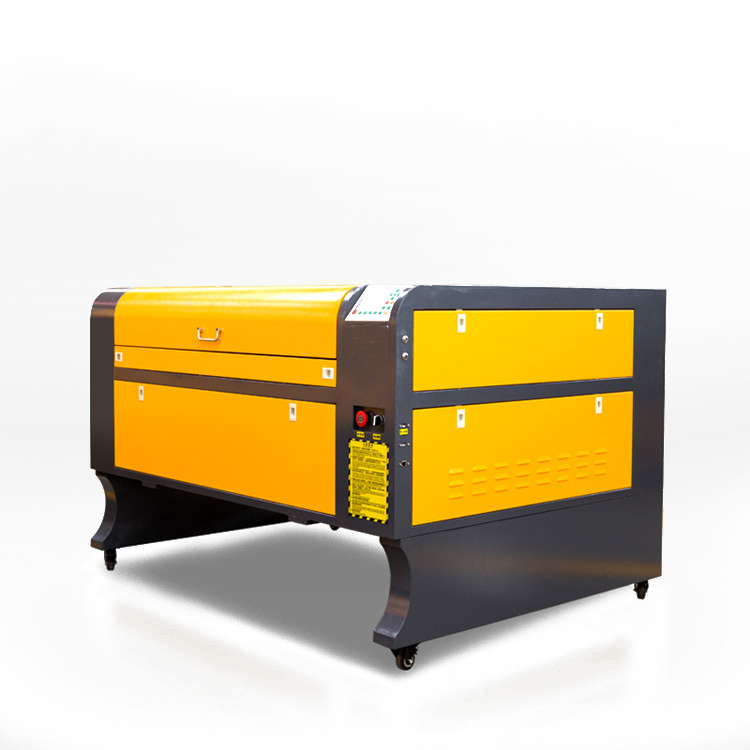

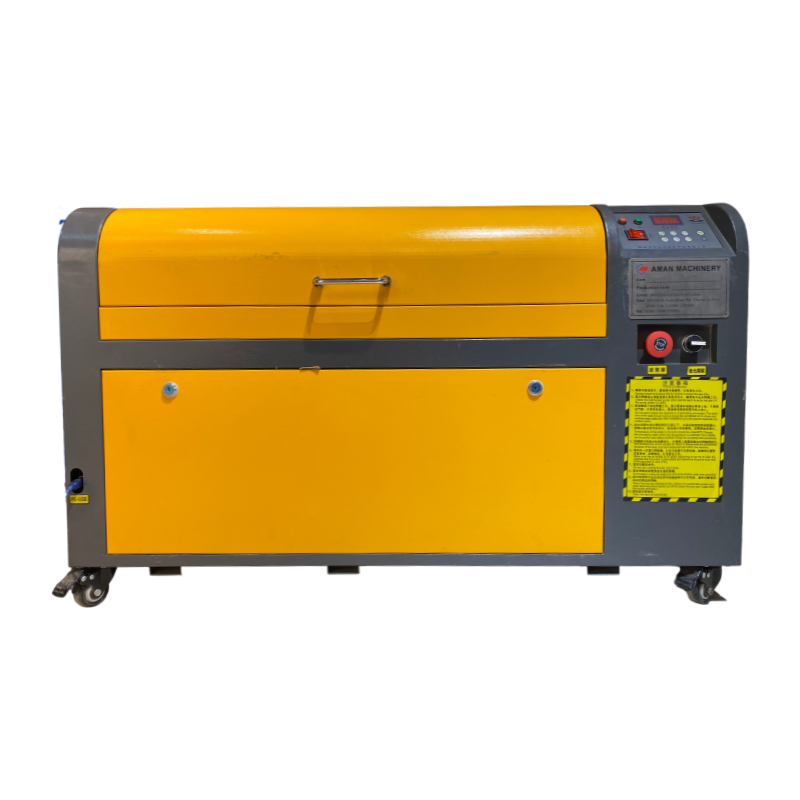

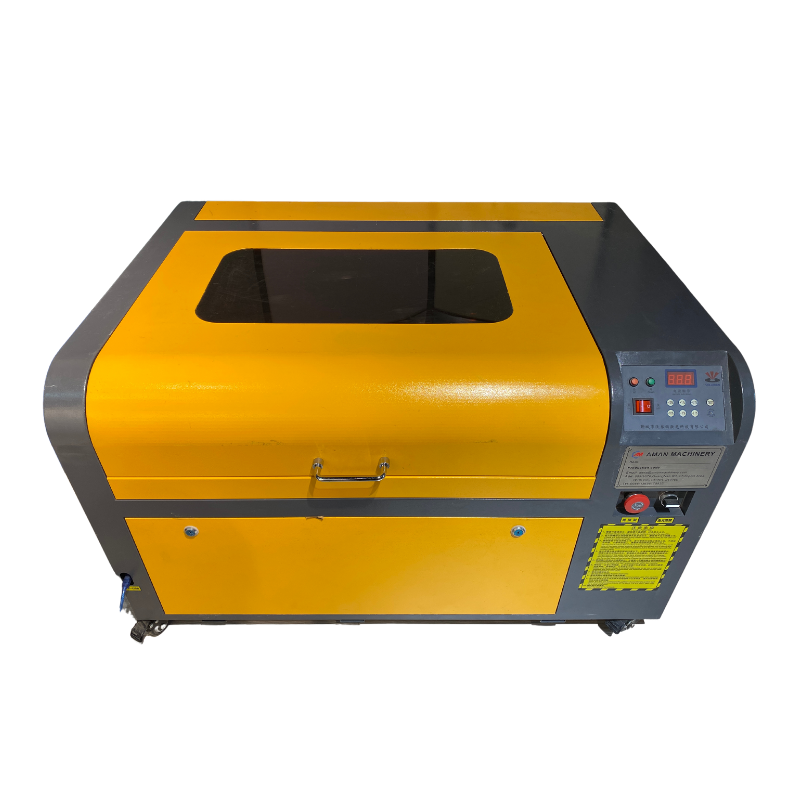

Product Description
Working area | 60*40cm |
Laser Power | 60W/80W/100W/130W |
Laser Power Supply | 12V 5A |
Input Voltage | 12V |
Number of Axes | X Axis Double Y Axis |
Minimum Character | 1mm |
Engraving speed maximum | 1000mm/s |
Laser tube | sealed carbon dioxide glass laser tube |
Guideway | Linear Guideway |
Drive Mode | 57 Digital Subdivision Stepper Drive |
Positioning Mode | Red Light |
Cooling Mode | Water Cooling |
Lift table space | 350 mm up and down adjustable |
The software supports indirect output | ArtCut, Photoshop |
Direct output | CorelDraw, AutoCAD, Photoshop, Laser CAD, etc |
Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc |
Power supply | 220V 10%50HZ/110V 10%50HZ |
Standard parts | blower and exhaust pipe, water chiller, air pump, electric lift table, DSP offline control, software, etc. |
Optional part rotary jig | used for carving on curved surface |
Optional Device | Water-cooling Machine, 360° Simple Rolling Machine, Chuck Rolling Machine, Chuck Non-standard Rolling machine |
